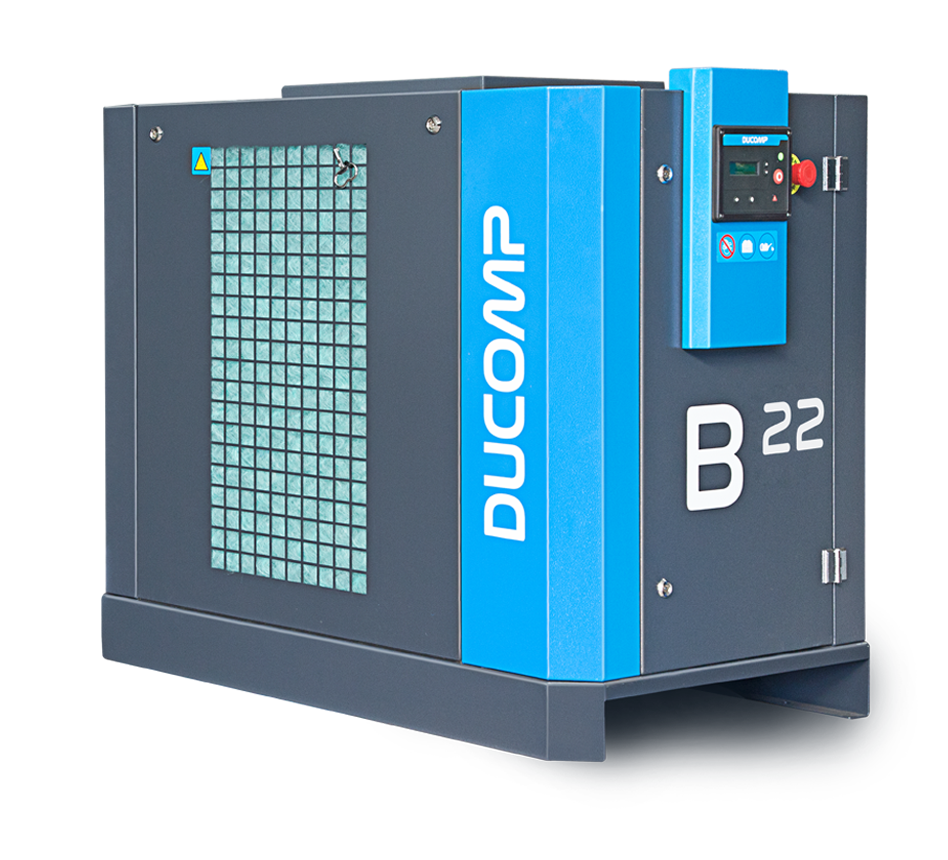

B Series Air Screw Compressor
Simple Design -Easy to Use
B Series compressors will be your most important partner in your business for many years with their ergonomic design, equipment quality and superior engineering, low energy costs, low maintenance costs and superior performance.
PLC Control Panel
Thanks to the programmable PLC control panel compatible with Industry 4.0, you can program, remotely monitor and record your compressor 24/7.
High Efficiency Electric Motor
The electric motor with İE3 High Efficiency and IP 55 protection class provides exceptional performance in dusty, humid and hot environments.
External Cooling System
Together with the cooling system, which starts by filtering atmospheric air and sucking it into the cabin, it ensures that the compressor operates at optimum temperature under the most challenging conditions
PL Type Belt Pulley Transmission System
Thanks to the PL belt pulley system, transmission losses are minimized and the screw element rotates at optimum speed and continues to serve the business in a long-lasting and efficient manner for many years.
Screw Block
Optimized rotor profiles and minimized
Thanks to the transmission losses
maximum efficiency of the energy spent
A screw element was used to transform the
Long-lasting Filter
Panel Filter in EU3 class and 99.5%
Double stage with efficient air filter
Provides filtering. In this way
Our compressors need two maintenance services in dusty environments.
It works with the efficiency of the first day.
| B SERİES AİR SCREW COMPRESSOR | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
Capacity | Motor Power | Voltage | Connection | Dimensions (W x L x H ) |
|||||||
| 7 Bar | 10 bar | 13 bar | kW/hp | volt | inch | mm | ||||||
| B 3 | 0,45 | 0,35 | - | 3/4 | 400/3 | 1/2" | 603 x 747x 705 | |||||
| B 4 | 0,58 | 0,46 | - | 4/5,5 | 400/3 | 1/2" | 603 x 747x 705 | |||||
| B 5,5 | 0,82 | 0,68 | 0,57 | 5,5/7,5 | 400/3 | 3/4" | 603 x 747x 705 | |||||
| B 7,5 | 1,2 | 0,9 | 0,70 | 7,5/10 | 400/3 | 3/4" | 643 x 818 x 865 | |||||
| B 11 | 1,80 | 1,32 | 1,15 | 11/15 | 400/3 | 3/4" | 643 x 818 x 865 | |||||
| B 15 | 2,1 | 1,9 | 1,60 | 15/20 | 400/3 | 1" | 643 x 818 x 865 | |||||
| B 16 | 2,6 | 2,1 | 1,85 | 15/20 | 400/3 | 1" | 820 x 1170 x 1050 | |||||
| B 18,5 | 3,1 | 2,6 | 2,2 | 18,5/25 | 400/3 | 1" | 820 x 1170 x 1050 | |||||
| B 22 | 3,7 | 3,2 | 2,7 | 22/30 | 400/3 | 1" | 820 x 1170 x 1050 | |||||
| B 30 | 5,2 | 4,4 | 3,75 | 30/40 | 400/3 | 1-1/4" | 892x 1538 x 1705 | |||||
| B 37 | 6,4 | 5,2 | 4,3 | 37/50 | 400/3 | 1-1/2" | 892x 1538 x 1705 | |||||
| B 45 | 7,2 | 6,3 | 5,6 | 45/60 | 400/3 | 1-1/2" | 892x 1538 x 1705 | |||||
| B 55 | 9,6 | 8,2 | 6,9 | 55/75 | 400/3 | 2" | 1165 x 1882 x 1790 | |||||
| B 75 | 12,8 | 10,7 | 8,8 | 75/100 | 400/3 | 2" | 1165 x 1882 x 1790 | |||||
